Hinged Doors

Aluminium Hinged Door

$353.00 - $767.00 / sq m Excluding GST

ENTER ALUMINIUM SIZESRead More
Total Area (sq m)
Product Price

Colour *

Select Your Powder Coat Finish

Selected Pearls

Lead Time *

Select Express If You Need It ASAP

Hinge Door Configuration *

Customize To Your Individual Requirements
NOTE: ALL PRODUCTS ARE VIEWED FROM OUTSIDE

Open IN – Hinged Door Opens Inside The Home
Open OUT – Hinged Door Opens Outside The Home
Hinged RIGHT – (Hinges are on Right Hand Side)
Hinged LEFT – (Hinges are on Left Hand Side)
WITH Threshold – (With Bottom section of Door frame)
NO Threshold – (Without Bottom section of Door frame)

Glazing *

Select Your Glass For Thermal Efficiency And Safety
NOTE: BAL 19,29 & 40 Bush Fire Areas Require 6mm Toughened Glass
NOTE: Windows Below 500mm From Floor Require Toughened Glass
NOTE: Windows In Bathrooms Require Toughened Glass
*DG Tgh= Double Glazed Toughened – *Low E = Low Emissivity
*U= U value – *SHGC= Solar Heat Gain Coefficient

Fly Doors And Retractable Screens

Select Your Fly Doors To Keep The Bugs Out
NOTE: BAL Rated Bush Fire Areas Require Aluminium Mesh
NOTE: Fly Doors Cannot Be Made Wider Than 1250mm
NOTE: Retractable Screen Is Normally Fitted Internally

Reveals

Select Your Pre Primed Timber Reveals To Suit Your Construction
NOTE: Reveals Adds H40mm & W40mm To Aluminium Sizes Entered

Special Reveal

Closer Trim

Select Closer Trim To Make Window In Line
NOTE: Reveal & Closer Trim Adds H43mm & W43mm To Aluminium Sizes Entered

Protection

Select Your Protective Wrap
NOTE: Protection Applied To External Glass & Aluminium Frame Only

Installation

Select If You Require Installation
NOTE: Installation Is Subject To Site Inspection
NOTE: Windows Above 800mm Require Scaffolding
NOTE: Added $320.00 Service Fee If Less Than 2 Items Installed

Internal Architraves

Select If You Require Internal Architraves
NOTE: To Match Existing Architraves Select Custom Architraves
NOTE: Ensure You Provide Sufficient Amount Of Custom Architraves

Disposal

Select If You Require Disposal Of Existing Windows

Description

Aluminium Hinged Doors are made easy at EZ Windows!

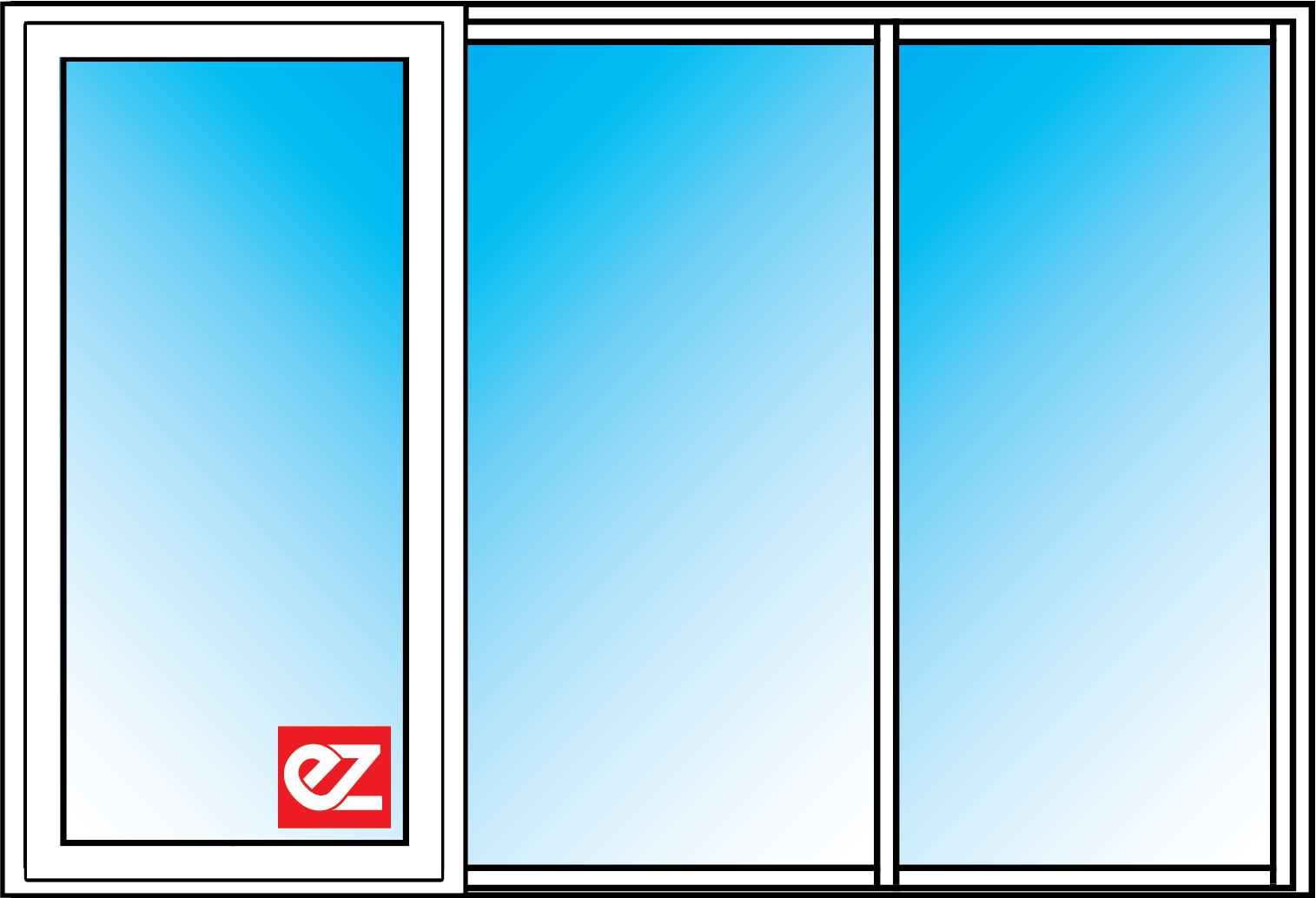

Hinged door on left hand side and two fixed panels on the right hand side – Viewing from outside.

Maximum Door Panel 2370mm High & 919mm Wide.

Viewed from outside this door can be made to open In or Out of your home.

Lock Height is standard 1050mm

Residential Hinged Door
Residential Series | Series 548 Click to Download)

EZ Hinged Doors

EZ Windows 548 High Performance hinged doors can be customized and configured to suit your individual requirements. Hinged doors provide large access and convenient easy operation.

The doors can be single or double glazed with a huge variety of performance-glass options to maximize energy efficiency with glass thicknesses up to 20mm.

Weather your an expert, a novice renovator or somewhere in between we can confidently accommodate your needs.

We are accessible on the phone during normal business hours and we’ll be happy to assist you with your window purchase.

Ps. Remember you also have EZ bot ready and happy to assist with any questions any time so ordering at any time has never been easier!

Additional information

Weight 264.6 kg
Glass Selection

5mm Clear Glass (U6.4 SHGC 0.73), 5mm Toughened Glass (U6.4 SHGC 0.73), Double Glazed (U4.2 SHGC 0.58)
