Aluminium Window Shroud Fixing Details
Aluminium Window Shroud Fixing Details for Architects, Builders and Designers
Aluminium window shroud fixing details are an essential part of designing, specifying and installing architectural window shrouds. The fixing method must account for the shroud’s dimensions, projection, weight, wind exposure, substrate, window position and surrounding façade construction.
For custom aluminium window shrouds, there is no single fixing method suitable for every project. The appropriate fixing arrangement should be determined from the project-specific design, approved shop drawings, substrate and applicable engineering requirements.
EZ Windows manufactures welded and modular aluminium window shroud systems for Australian residential, commercial, education, multi-residential and architectural projects.
This guide explains the principal considerations when developing architectural window shroud fixing details, while project-specific fixing arrangements should always be confirmed through the approved drawings and relevant engineering documentation.
Why Aluminium Window Shroud Fixing Matters
A well-designed shroud can transform the appearance of a façade, but its performance depends on how it is supported and connected to the building.
Fixing design must consider:
- Shroud dimensions
- Shroud projection
- Shroud weight
- Wind loading
- Substrate
- Fixing capacity
- Building movement
- Installation tolerances
- Waterproofing
- Adjacent façade materials
The fixing system should provide secure support without compromising the window, façade or building-envelope system.
Aluminium Window Shroud Fixing Principles
A fixing arrangement should achieve several objectives:
Secure the Shroud
The shroud must remain securely positioned under the anticipated project loads.
Maintain Alignment
The fixing system should allow the installer to achieve the required:
- Level
- Plumb
- Alignment
- Projection
Accommodate Tolerances
The system should allow for reasonable building and installation tolerances.
Protect the Building Envelope
Fixing should be coordinated with membranes, flashings, sealants and drainage.
Maintain the Architectural Finish
Visible fixing should be minimised or deliberately incorporated into the architectural design.
Common Aluminium Window Shroud Fixing Methods
Depending on the project, aluminium shrouds may be fixed using arrangements such as:
- Mechanical fixings
- Fixing lugs
- Brackets
- Cleats
- Angles
- Subframe connections
- Project-specific support systems
The appropriate method depends on the actual building construction.
Fixing to Masonry
Where a shroud interfaces with masonry construction, the fixing arrangement should consider:
- Brickwork
- Blockwork
- Mortar joints
- Structural substrate
- Cavity construction
- Masonry tolerances
Fixings should be installed into an appropriate substrate rather than relying on an unsuitable façade surface.
The project-specific fixing detail should identify the intended fixing location and substrate.
Fixing to Concrete
Concrete can provide a suitable structural substrate for many architectural applications when correctly designed.
Considerations can include:
- Concrete strength
- Edge distances
- Reinforcement
- Anchor type
- Shroud loading
- Projection
- Installation access
The appropriate anchor and fixing arrangement should be selected for the specific application.
Fixing to Steel
Steel framing can provide a suitable support structure where designed for the required loads.
Possible connections can include:
- Brackets
- Cleats
- Bolted connections
- Mechanical fixings
- Project-specific subframes
The connection should be coordinated between the architectural, structural and façade documentation.
Fixing to Timber
Where timber framing is used, fixing requirements depend on:
- Timber type
- Structural member size
- Fixing location
- Load
- Shroud projection
- Building movement
Fixings should connect to suitable structural members rather than relying solely on non-structural cladding.
Fixing to Lightweight Framing
Lightweight wall systems require particular care.
The shroud should not simply be attached to a thin façade lining where the substrate cannot support the imposed load.
Possible approaches may involve:
- Structural framing
- Reinforcement
- Brackets
- Secondary support
- Project-specific subframes
The appropriate support arrangement should be established during design.
Fixing to Cladding Systems
Cladding should generally be treated as a façade finish rather than automatically assumed to be a structural support.
The fixing strategy should identify how the shroud transfers loads back to an appropriate structural or adequately reinforced substrate.
Coordination with the cladding contractor is important.

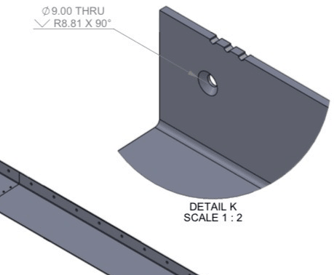

Aluminium Window Shroud Fixing Lugs
Fixing lugs can provide a practical method of connecting a shroud to the building structure or prepared support.
The location and configuration of fixing lugs should be shown on the approved shop drawings.
Fixing lugs may affect the available clearance between:
- Window
- Shroud
- Wall
- Fixing
This should be considered during design.
Window Clearance and Fixing
Clearance is an important consideration when developing fixing details.
A common design allowance is approximately 10 mm between the window dimensions and the internal shroud dimensions, subject to the project requirements.
Fixing components may require additional space.
For example, a fixing lug or connection component may extend into the available internal space and must therefore be incorporated into the dimensional coordination.
Final dimensions should be confirmed through approved shop drawings.
Welded Shroud Fixing Details
Welded shrouds are generally delivered as a substantially complete architectural assembly.
Fixing details may therefore be designed around:
- External brackets
- Fixing lugs
- Cleats
- Direct mechanical fixing
- Concealed connections
- Project-specific support
The preferred arrangement depends on the shroud geometry and building substrate.
Modular Shroud Fixing Details
Modular shrouds are assembled from separate components.
Fixing design may therefore incorporate:
- Individual component fixings
- Joining components
- Corner connections
- Brackets
- Fixing lugs
- Substrate connections
The modular construction method can simplify handling and installation, particularly for large shrouds.
Concealed Aluminium Shroud Fixings
Where architectural appearance is particularly important, concealed or visually minimised fixing can be considered.
The objective is to maintain:
- Clean lines
- Uninterrupted faces
- Consistent geometry
- Premium architectural appearance
The feasibility of concealed fixing depends on the shroud design and substrate.
Visible Aluminium Shroud Fixings
In some projects, visible fixings may be acceptable.
Where visible fixings are used, consider:
- Colour
- Position
- Alignment
- Spacing
- Corrosion resistance
- Architectural appearance
Fixing locations should be coordinated with the elevations and shop drawings.
Fixing Spacing
Fixing spacing should not be selected using a generic rule for every project.
The required spacing depends on:
- Shroud size
- Material
- Projection
- Wind loading
- Fixing type
- Substrate
- Support arrangement
Project-specific engineering or manufacturer documentation should establish the final fixing arrangement where required.
Wind Loading and Shroud Fixings
External shrouds can be exposed to wind forces.
Wind effects can increase with:
- Building height
- Shroud projection
- Exposure
- Building location
- Shroud surface area
The fixing system should therefore be capable of transferring the applicable loads to the supporting structure.
For projects requiring structural assessment, wind loading should be determined by the relevant project engineer.
Shroud Weight and Fixing
The shroud’s own weight must also be considered.
Weight is influenced by:
- Overall size
- Material thickness
- Profile geometry
- Construction method
- Reinforcement
Large welded assemblies may require additional handling and support considerations.
Building Movement
The connection between a shroud and the building must be considered in relation to movement.
Potential movement sources include:
- Thermal expansion
- Structural movement
- Settlement
- Façade movement
- Window movement
The fixing system should be designed so that movement does not create unintended stress or damage.
Aluminium Thermal Movement
Aluminium expands and contracts with temperature changes.
Long shrouds and continuous architectural elements should therefore be considered carefully.
The design may require consideration of:
- Expansion
- Jointing
- Fixing positions
- Slotted connections
- Building movement
The appropriate solution should be established for the specific project.
Fixing and Waterproofing
Fixing penetrations through a building envelope must be coordinated with the waterproofing strategy.
Potential interfaces include:
- Membranes
- Flashings
- Sealants
- Window frames
- Cladding
- Cavity systems
Fixing should not compromise the intended weatherproofing system.
Fixing and Window Installation
The window and shroud should be considered together.
The installation sequence may involve:
- Structural opening prepared.
- Window installed.
- Window checked and approved.
- Shroud positioned.
- Shroud aligned.
- Fixing completed.
- Waterproofing and interfaces completed.
- Finish protected.
The actual sequence may vary according to the project.
Fixing Before Window Installation
Some projects may require the shroud support or components to be installed before the window.
This may be appropriate where:
- Access is restricted
- A subframe is required
- The shroud integrates with the façade
- Construction sequencing requires early installation
The sequence should be established during project coordination.
Fixing After Window Installation
Other projects may install the window first and then fit the shroud.
This can simplify coordination because the actual window position can be verified before the shroud is installed.
The appropriate sequence depends on the building design and installation methodology.
Aluminium Window Shroud Installation Tolerances
The installation process should allow for reasonable differences between:
- Architectural drawings
- Structural openings
- Window installation
- Façade construction
- Manufactured shroud dimensions
Tolerances should be resolved during shop drawing review.
Fixing Details for Brickwork
For brick veneer construction, the shroud may interface with:
- Brickwork
- Cavity
- Flashing
- Window
- Structural frame
The fixing arrangement must be coordinated so that the shroud does not compromise cavity drainage or flashing.
Fixing Details for Rendered Walls
Rendered walls require consideration of:
- Render thickness
- Substrate
- Mesh
- Render movement
- Waterproofing
The shroud should be supported independently where required rather than relying on the render finish.
Fixing Details for Clad Walls
For cladding systems, coordinate:
- Cladding thickness
- Cavity
- Subframe
- Flashing
- Shroud
- Window
The shroud fixing should connect to a suitable structural support system.
Fixing Details for Commercial Buildings
Commercial buildings can require more complex support arrangements because of:
- Larger openings
- Greater shroud dimensions
- Increased wind exposure
- Multiple façade systems
- Repeated architectural elements
Project-specific engineering and façade coordination may therefore be required.
Fixing Details for Schools and Universities
Education projects can include extensive repeated shroud installations.
The fixing strategy should be documented consistently across the project while accounting for variations in:
- Wall construction
- Window sizes
- Building orientation
- Façade systems
Fixing Details for Residential Projects
Residential shrouds are often highly customised.
Fixing details should therefore be coordinated with:
- Window dimensions
- Wall construction
- Cladding
- Brickwork
- Render
- Architectural detailing
Fixing Details for Large Architectural Shrouds
Large shrouds require additional consideration of:
- Weight
- Handling
- Wind loading
- Projection
- Structural support
- Installation access
Modular construction may provide logistical advantages where a complete welded assembly becomes difficult to transport or handle.
Fixing Details for Corner Shrouds
Corner windows can create more complex fixing requirements.
The design may need to account for:
- Two façade directions
- Corner geometry
- Window junction
- Shroud joining
- Structural support
- Waterproofing
Corner details should be clearly documented before manufacture.
Fixing Details for Deep Window Shrouds
Deep shrouds create greater leverage on the fixing points.
As projection increases, the fixing design may need to account for increased moment forces.
This makes the relationship between:
Projection + Weight + Wind Load + Support
particularly important.
Fixing Detail Shop Drawings
A project-specific fixing drawing may identify:
- Shroud profile
- Fixing location
- Fixing type
- Fixing spacing
- Substrate
- Brackets
- Lugs
- Clearances
- Window relationship
- Waterproofing interface
These details should be reviewed and approved before manufacture where required.
Recommended Fixing Detail Workflow
A practical workflow is:
Step 1 — Confirm Window Dimensions
Establish the final window sizes and locations.
Step 2 — Confirm Wall Construction
Identify the actual supporting substrate.
Step 3 — Establish Shroud Dimensions
Confirm width, height, projection and returns.
Step 4 — Select Construction Method
Determine whether the project requires welded or modular construction.
Step 5 — Determine Support
Establish how the shroud will transfer loads to the building.
Step 6 — Develop Fixing Details
Document fixing locations and components.
Step 7 — Coordinate Waterproofing
Resolve membranes, flashings and sealants.
Step 8 — Produce Shop Drawings
Document the final configuration.
Step 9 — Obtain Approval
Confirm the drawings before manufacture.
Step 10 — Install
Install according to the approved documentation.
Aluminium Window Shroud Fixing Checklist
Before manufacture or installation, confirm:
- Window dimensions confirmed
- Wall construction confirmed
- Shroud dimensions confirmed
- Projection confirmed
- Construction method confirmed
- Fixing substrate identified
- Fixing arrangement documented
- Wind loading considered
- Shroud weight considered
- Building movement considered
- Waterproofing coordinated
- Installation sequence established
- Shop drawings approved
- Fixings available
- Finished surfaces protected
Important Fixing Disclaimer
Fixing details shown or discussed on this page are general design considerations and should not be interpreted as a universal fixing specification.
The appropriate fixing method depends on the specific building, substrate, shroud geometry, loads and project requirements.
Where engineering is required, the final fixing arrangement should be confirmed by the relevant project engineer and documented in the approved project drawings.
EZ Windows Aluminium Window Shroud Fixing Support
EZ Windows can assist architects, designers and builders with project-specific shroud coordination.
Support can include:
- Product selection
- Shroud dimensions
- Construction method
- Shop drawings
- Fixing coordination
- CAD details
- BIM information
- Installation information
The objective is to ensure the shroud is properly coordinated before manufacturing begins.
Why Specify EZ Windows?
EZ Windows designs and manufactures custom aluminium window shrouds for Australian architectural projects.
Our systems include:
- Welded aluminium window shrouds
- Modular aluminium window shrouds
- External window shrouds
- Aluminium window surrounds
- Window hood systems
We work with architects, designers, builders and developers to develop project-specific solutions that can move from architectural design through to manufacture and supply.
Frequently Asked Questions
How are aluminium window shrouds fixed?
They may be fixed using project-specific brackets, lugs, cleats, mechanical fixings or other support arrangements depending on the substrate and design.
Can window shrouds be fixed to brickwork?
They can be designed to interface with masonry, but the fixing must connect to an appropriate supporting substrate.
Can window shrouds be fixed to concrete?
Yes, subject to an appropriate fixing and anchor system being selected for the project.
Can shrouds be fixed to steel?
Yes. Steel framing can provide support where appropriately designed.
Can shrouds be fixed to timber?
Yes, provided suitable structural support and fixing arrangements are established.
Can fixing be concealed?
Concealed or visually minimised fixing may be possible depending on the shroud design and substrate.
How many fixings does a shroud need?
There is no universal number. Fixing requirements depend on the size, projection, weight, loading and substrate.
Do deep shrouds require stronger fixing?
Potentially. Increased projection can increase forces acting on the fixing points and should be considered during design.
Does the shroud fixing affect waterproofing?
It can. Fixings and penetrations must be coordinated with the building-envelope waterproofing system.
Should fixing details be engineered?
Where project conditions require engineering assessment, the final fixing arrangement should be determined and documented by the relevant project professionals.
Does EZ Windows provide fixing details?
Project-specific fixing and shop-drawing information can be developed according to the shroud configuration and project requirements.
Request Aluminium Window Shroud Fixing Details
Planning an aluminium window shroud project?
EZ Windows can assist with product selection, shop drawings, fixing coordination and project-specific technical information.
Request Fixing Details
Request CAD & BIM Resources
Speak With EZ Windows About Your Project
Related Resources
Explore:
Aluminium Window Shrouds | Custom Architectural Window Shrouds Australia
Modular Aluminium Window Shrouds
Welded Aluminium Window Shrouds
Custom Aluminium Window Shrouds
Commercial Aluminium Window Shrouds
Residential Aluminium Window Shrouds
Aluminium Window Shroud Technical Data
Aluminium Window Shroud Fixing Details
Aluminium Window Shroud Specifications
Aluminium Window Shroud Dimensions & Design Guide
